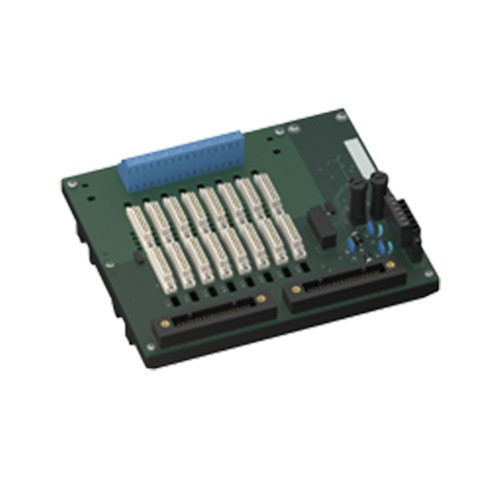

HiCTB16-TRX-RSC-SP-AI16-NEX Pepperl+Fuchs Termination Board
  1. HiCTB16-TRX-RSC-SP-AI16-NEX Pepperl+Fuchs Termination Board

HiCTB16-TRX-RSC-SP-AI16-NEX Pepperl+Fuchs Termination Board

Product Item:HiCTB16-TRX-RSC-SP-AI16-NEX

HiCTB16-TRX-RSC-SP-AI16-NEX
Send Inquiry Live chat PDF

Description

Supply
Connection X20: terminals 3, 5(+); 4, 6(-)
Nominal voltage 24 V DC , in consideration of rated voltage of used isolators
Voltage drop 0.9 V , voltage drop across the series diode on the termination board must be considered
Ripple ≤ 10 %
Fusing 4 A , in each case for 16 modules
Power dissipation ≤ 500 mW , without modules
Reverse polarity protection yes
Redundancy
Supply Redundancy available. The supply for the isolators is decoupled, monitored and fused.
Fault indication output
Connection X20: terminals 1(+), 2(-)
Output type volt-free transistor output , not short-circuit protected , not overload protected
Rated voltage 30 V DC
Rated current 100 mA
Signal level no fault: (external voltage) - 1 V max. for 100 mA (Tamb = 25 °C (77 °F))
power supply fault: blocked output (off-state current ≤ 10 µA)
Indicators/settings
Display elements LED PWR1 (termination board power supply), green LED
LED PWR2 (termination board power supply), green LED
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2017
For further information see system description.
Degree of protection IEC 60529:2001
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Degree of protection IP20
Connection
Field side 4 spring terminals per module , black
Control side ELCO socket, 56-pin
Supply pluggable spring terminals , black
Fault output pluggable spring terminals , black
Core cross section spring terminals 0.25 ... 1.5 mm2 (24 ... 16 AWG)
Material housing: polycarbonate, 10 % glass fiber reinforced
Mass approx. 675 g
Dimensions 216 x 200 x 163 mm (8.5 x 7.9 x 6.42 inch) (W x H x D) , depth including module assembly
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Classifications

System Classcode
ECLASS 11.0 27211016
ECLASS 10.0.1 27219001
ECLASS 9.0 27219001
ECLASS 8.0 27219001
ECLASS 5.1 27219901
ETIM 8.0 EC001485
ETIM 7.0 EC001485
ETIM 6.0 EC001485
ETIM 5.0 EC002653
UNSPSC 12.1 39121018
