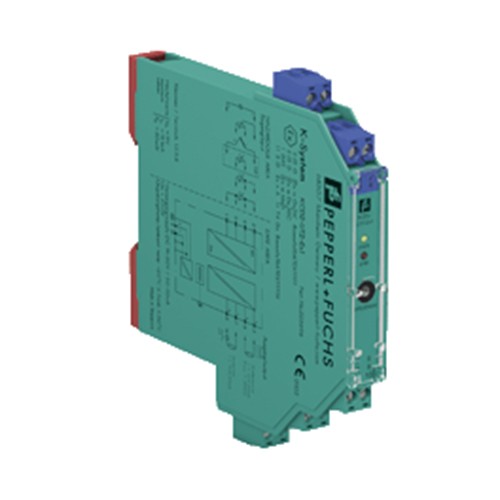

Description
| General specifications | ||
|---|---|---|
| Signal type | Digital Input | |
| Supply | ||
| Connection | Power Rail or terminals 14+, 15- | |
| Rated voltage | 20 ... 30 V DC | |
| Rated current | 30 ... 40 mA | |
| Input | ||
| Connection side | field side | |
| Connection | terminals 1, 4 (mass), 2, 5 (min), 3, 6 (max) | |
| Control input |
min./max. control system: terminals 1, 2, 3; 4, 5. 6 on/off control system: terminals 1, 3; 4, 6 |
|
| Response sensitivity | 1 ... 150 kΩ , adjustable via potentiometer | |
| Output | ||
| Connection side | control side | |
| Connection | terminals 7, 8, 9; 10, 11, 12 | |
| Switching power | max. 192 W , 2000 VA | |
| Output | relay | |
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load | |
| Time constant for signal damping | 0.5 s, 2 s, 5 s, 10 s | |
| Galvanic isolation | ||
| Input/Output | basic insulation according to EN 50178, rated insulation voltage 253 Veff | |
| Input/power supply | basic insulation according to EN 50178, rated insulation voltage 253 Veff | |
| Output/power supply | basic insulation according to EN 50178, rated insulation voltage 253 Veff | |
| Indicators/settings | ||
| Display elements | LEDs | |
| Control elements |
DIP switch potentiometer |
|
| Configuration |
via DIP switches via potentiometer |
|
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2004/108/EC | EN 61326-1:2006 | |
| Low voltage | ||
| Directive 2006/95/EC | EN 50178:1997 | |
| Conformity | ||
| Insulation coordination | EN 50178:1997 | |
| Galvanic isolation | EN 50178:1997 | |
| Electromagnetic compatibility | NE 21:2006 | |
| Degree of protection | IEC 60529:2001 | |
| Ambient conditions | ||
| Ambient temperature |
-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
|
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals , max. 2.5 mm2 | |
| Mass | approx. 150 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 | |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| General information | ||
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27210121 |
| ECLASS 10.0.1 | 27210121 |
| ECLASS 9.0 | 27210121 |
| ECLASS 8.0 | 27210121 |
| ECLASS 5.1 | 27210121 |
| ETIM 8.0 | EC001447 |
| ETIM 7.0 | EC001447 |
| ETIM 6.0 | EC001447 |
| ETIM 5.0 | EC001485 |
| UNSPSC 12.1 | 32101514 |
