HOME BRAND PEPPERL+FUCHS P+F Safety Barrier KFD2-VM-Ex1.35.L Pepperl+Fuchs Solenoid
KFD2-VM-Ex1.35.L Pepperl+Fuchs Solenoid Driver

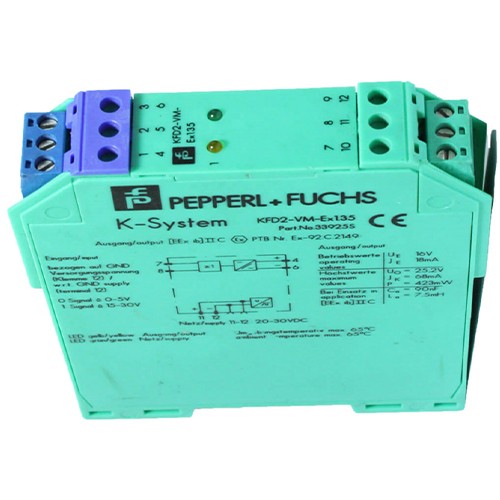

  1. KFD2-VM-Ex1.35.L Pepperl+Fuchs Solenoid Driver

KFD2-VM-Ex1.35.L Pepperl+Fuchs Solenoid Driver

KFD2-VM-Ex135L
Send Inquiry Live chat PDF

Description

General specifications
Signal type Digital Output
Supply
Connection Power Rail or terminals 11+, 12-
Rated voltage 20 ... 30 V DC
Ripple ≤ 10 %
Rated current ≤ 52 mA
Power dissipation typ. 1.2 W
Power consumption < 1.5 W
Input
Connection side control side
Connection terminals 7+, 8+, 9+
Signal level 1-signal: 15 ... 30 V DC ; input current: approx. 2.3 mA at 24 V DC
0-signal: 0 ... 5 V DC or open input
Response delay 5 ... 30 ms (typical 10 ms)
Output
Connection side field side
Internal resistor max. 410 Ω
Current typ. 18 mA
Voltage typ. 16 V
Limit current IE: ≥ 17 mA; typ. 18 mA
voltage UE: ≥ 15.3 V; typ. 16 V
Open loop voltage min. 22.3 V
Connection terminals 4+, 6-
Output rated operating current 17 mA
Output signal These values are valid for the rated operating voltages from 20 ... 30 V DC.
Transfer characteristics
Switching frequency 15 Hz
Galvanic isolation
Input/power supply not available
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21
Degree of protection IEC 60529:2001
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 150 g
Dimensions 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate PTB 00 ATEX 2132
Marking Ex-Hexagon II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]
Output Ex ia
Voltage 25.2 V DC
Current 67.2 mA
Power 423.5 mW (linear characteristic)
Supply
Maximum safe voltage 253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.)
Input
Maximum safe voltage 60 V (Attention! Um is no rated voltage.)
Galvanic isolation
Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012
General information
Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Classifications

System Classcode
ECLASS 11.0 27210190
ECLASS 10.0.1 27210190
ECLASS 9.0 27210190
ECLASS 8.0 27210190
ECLASS 5.1 27210121
ETIM 8.0 EC001485
ETIM 7.0 EC001485
ETIM 6.0 EC001485
ETIM 5.0 EC001485
UNSPSC 12.1 39121008
