HOME BRAND KEYENCE KEYENCE CZ-K1P in stock and ready to shi
KEYENCE CZ-K1P in stock and ready to ship
  1. KEYENCE CZ-K1P in stock and ready to ship

KEYENCE CZ-K1P in stock and ready to ship

Product Item:CZ-K1P

Keyence CZ-K1P in stock and ready to ship
Send Inquiry Live chat PDF

Description

Specifications

Model

CZ-K1P

Output

PNP

Light source

Red LED, Green LED, Blue LED

Response time

300 µs/1 ms (switch-selectable)

Indicator lamp

Output: Red LED, Calibration: Orange LED, External synchronization input: Green LED,
Matching rate/received light intensity: LCD (Red/Green)

Error indication

Excess light intensity, insufficient light intensity, insufficient color difference

Calibration method

1-point/2-point calibration (switch-selectable)

Tolerance value adjustment

Numerical value setting on digital display

Differentiation mode

C mode/C + I mode/I mode (switch-selectable)

Timer function

OFF-delay timer (40 ms)/Timer OFF (switch-selectable)

Output selection

Match output: Turns on when target color matches registered color.
Mismatch output: Turns on when target color is different from registered color. (switch-selectable)

External synchronization input

Response speed: 500 µs max.

External calibration input

Input response time: 20 ms min.

Registered color selection

8-bank selection (By external input),
Non-voltage input, Input response time: 20 ms min.

Control output

PNP: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.

Protection circuit

Reverse-polarity protection (power supply),
overcurrent protection (output), surge absorber (output)

Rating

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

Current consumption

75 mA or less

Environmental resistance

Ambient light

Incandescent lamp: 5,000 lux max., Sunlight: 10,000 lux max.

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)*1

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Shock resistance

500 m/s2, 3 times in each of the X, Y, and Z directions

Case material

Polycarbonate

Weight

Approx. 115 g (including 2-m 6.6' cable)

Related Products

KFD2-DU-EX1.D | Pepperl+Fuchs | Switch Amplifier

KFD2-DU-EX1.D | Pepperl+Fuchs | Switch Amplifier

KFD2-UT2-Ex2-1 Pepperl+Fuchs  Universal Temperature Converter

KFD2-UT2-Ex2-1 Pepperl+Fuchs Universal Temperature Converter

SMART Transmitter Power Supply, Output Current Sink KFD2-STC4-Ex1.2O-Y1

SMART Transmitter Power Supply, Output Current Sink KFD2-STC4-Ex1.2O-Y1

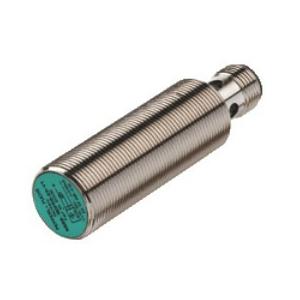

NBN5-F7-E2 Proximity sensors Pepperl+Fuchs

NBN5-F7-E2 Proximity sensors Pepperl+Fuchs

R2-SP-IC12 Pepperl+Fuchs Segment Protector

R2-SP-IC12 Pepperl+Fuchs Segment Protector

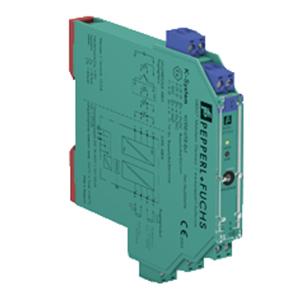

KFD2-SLD-Ex2.1245 Pepperl+Fuchs Solenoid Driver
