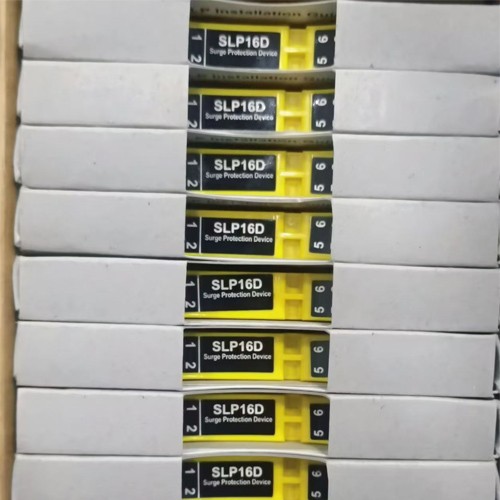

SLP16D Eaton Crouse-Hinds Series MTL SLP Surge Protector
Product Item:SLP16D
Description
General specifications
| Product Name |
Eaton Crouse-Hinds series MTL SLP surge protector
|
| Product Name |
Eaton Crouse-Hinds series MTL SLP surge protector
|
| Catalog Number |
SLP16D
|
| Product Length/Depth |
90 mm
|
| Product Height |
90 mm
|
| Product Width |
12 mm
|
| Product Weight |
140 g
|
| Global Catalog |
SLP16D
|
| Product Type |
Surge protector
|
Product specifications
| Area classification |
Hazardous/Classified Locations
|
| Standards type |
NEC/CEC
IECEx/ATEX IEC |
| Ingress protection (IP) ratings |
IP20
|
| Mounting Method |
T-section DIN rail
|
| Frequency |
50 MHz
|
| Response Time |
<1ns
|
| Category Tested Acc. IEC 61643-21 |
A2, B2, C1, C2, C3, D1
|
| Connection Details |
Plug/header screw terminal strip
|
| Conductor Cross-section AWG |
12 AWG
|
| Minimum Ambient Operating Temperature |
-40 °C
|
| Maximum Ambient Operating Temperature |
80 °C
|
| Minimum Ambient Storage Temperature |
-40 °C
|
| Maximum Ambient Storage Temperature |
80 °C
|
| Humidity |
5-95% RH (non-condensing)
|
| Modes of Protection |
For digital and analogue I/O
|
| Nominal Voltage DC |
16V
|
| Nominal Discharge Surge Current (8/20) |
10 kA
|
| Lightning Impulse Current (10/350 µs) |
2.5 kA
|
| Nominal Load Current |
1.5A
|
| Voltage Protection Level at In |
23V
|
| Voltage Protection Level at 1kV/µS |
<18V
|
| Series Resistance (Ω/Line) |
1.0Ω
|
| Max. Leakage Current |
<1µA
|
| Max. Continuous Voltage DC |
18V
|
| IEC |
IEC61643-21
|
