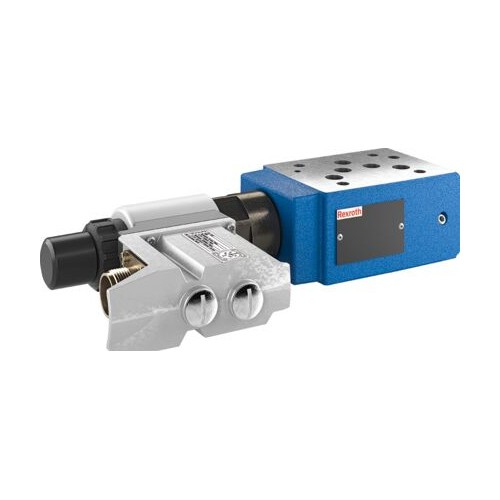

Prop Pressure Control Valve R901483246 Z3DREE10VP2-10/200XLG24K31A1M
- Product Item: R901483246
Description
Product Description
Technical Specs
| Product attributes | |
|---|---|
| Connection diagram | ISO 4401-05-05-0-05 |
| Product family | Z3DRE€ |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 120.0 |
| Spool symbol | P2 → P1 |
| Type of connection | Sandwich plate |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Valve ports number | 4 |
| Valve position number | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electric connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 0…10 V |
| Conformity | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Conformity | CE UKCA |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 3.4 |
