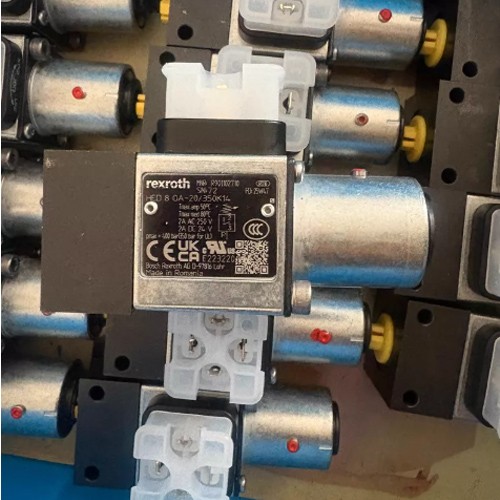

Rexroth Pressure Relay R901102710 HED8OA-20/350K14

Product Item:R901102710

Description

Product Description

Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressure

Internal hexagon

Piston type pressure switch

Micro switch with normally closed contact/NO contact function

Pipeline installation

Without mating connector, connector DIN EN 175301-803

With NBR seals

Technical Specs

Product attributes
Connection diagram	Internal thread G1/4
Product family	HED 8
Operating pressure, max. [bar]	400.0
Type of connection	Pipeline
Outputsignal	Micro switch with normally closed contact/NO contact function
Supply voltage	12...250 V AC/DC
Electrical connector	Connector, 4-pole (3 + PE)
Electric connection description	Connector, 4-pole (3 + PE) according to EN 175301-803
Conformity	CE – Low-Voltage Directive 2014/35/EU CE – RoHS Directive 2011/65/EU UKCA – RoHS Directive SI2012/3032 UKCA – Low-Voltage Directive SI2016/1091
Conformity	UKCA RoHS CE
Hydraulic fluid	HL HLP HLPD HVLP HVLPD
Seals	NBR
Weight [kg]	0.73
