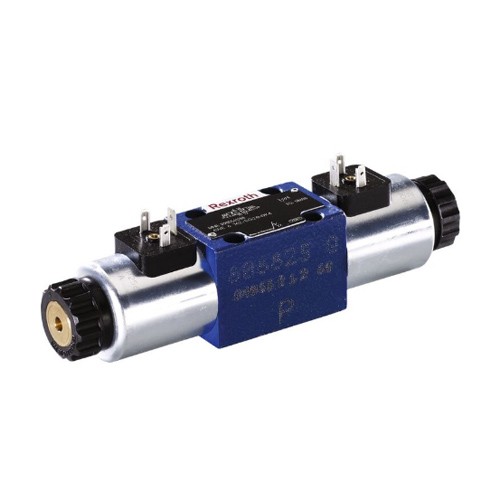

Description
Physical size and weight
| Net weight | 1.42 kg |
|---|---|
| Operating pressure, max. | 350 bar |
| Max. flow | 70 l/min |
Other properties
| Connection diagram | ISO 4401-03-02-0-05 |
|---|---|
| Product family | WE6../E |
| ECLASS_13_Classification | 51-44-01-02 |
| Spool symbol | Symbol D |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 220 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Conformity description | UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU |
| Conformity | UKCA,CE |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
| Seals | FKM |
