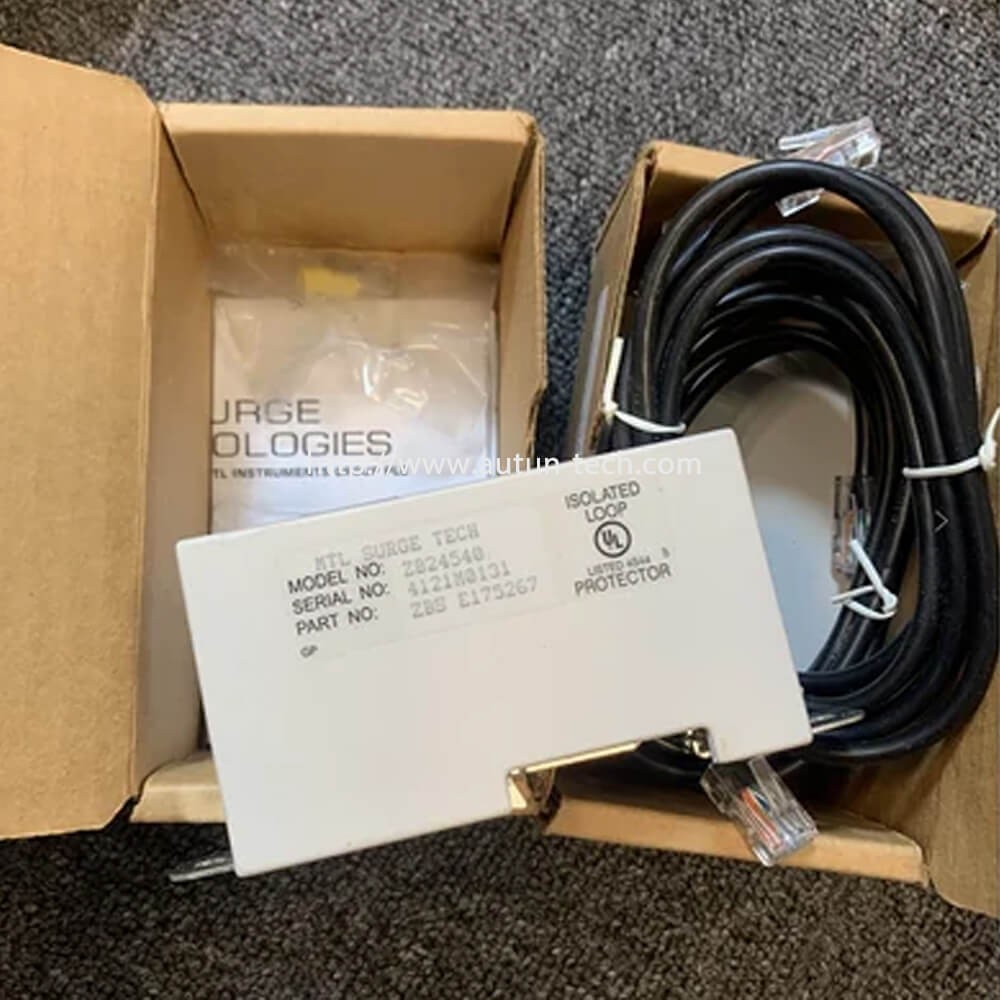

ZB24540 MTL Instruments ZoneBarrier Data

Description

• Manufacturer : MTL Instruments

• Product Number : ZB24540

• Product type : ZoneBarrier Data

• Maximum load current : 0.5 Amps

• Maximum surge current : 8kA (1kA per line)

• Maximum leakage current : 5µA at working voltage

• Maximum in line resistance : < 5 ohms

• Bandwidth :155 MHz

• Ambient temperature limits : –40°F to +185°F (working), –40°C to +85°C (working)

• Humidity : 95% RH (non-condensing)

• Casing : Molded plastic

• EMC compliance : BS EN 60950: 1992, BS EN 61000-6-2: 1999

• Lines : 8

• Working voltage (V) : 5

• Limiting voltage (V) : 10

• Connectors : RJ45
